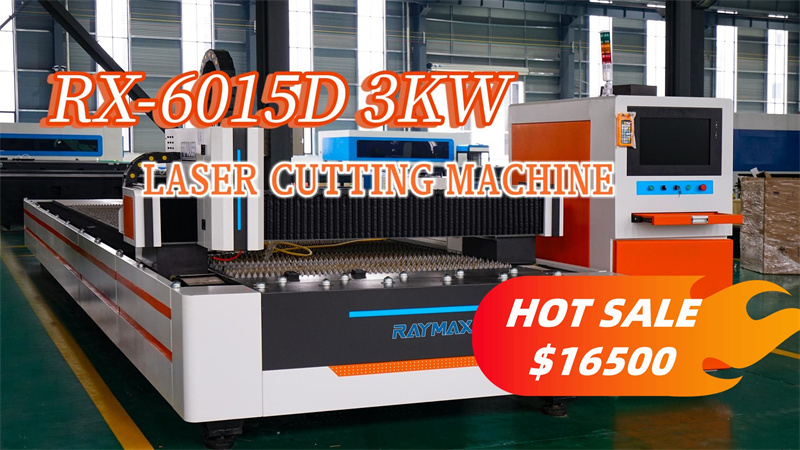

High Quality RX-6015D 3KW Cnc Fiber Laser Cutting Machine



വിവരണം

Experience the ultimate in laser cutting technology with the RAYMAX 6015D 3KW fiber laser cutting machine, now available for just $16,500. This cutting-edge machine features an advanced laser from a renowned international brand, offering exceptional electro-optical efficiency while prioritizing eco-friendliness through water and energy conservation. One of its most impressive qualities is its long maintenance-free operation, drastically reducing upkeep costs and minimizing downtime to enhance your overall productivity.

The RAYMAX 6015D is designed with a robust gantry structure and high-damping bed, providing unparalleled rigidity and precision for stable operation. Constructed from premium high-quality steel and featuring a honeycomb design, the frame undergoes a meticulous annealing process and extensive machining on a large gantry milling machine. This attention to detail ensures exceptional seismic resistance and stability, perfectly catering to the rigorous demands of high-speed motion in laser cutting applications. Elevate your cutting capabilities and streamline your production process with the RAYMAX 6015D today!



പരാമീറ്ററുകൾ

Product ModelRX-3015RX-4020RX-6015RX-6025
വർക്കിംഗ് ഏരിയ3000*1500 മി.മീ4000*2000 മി.മീ6000*1500mm6000*2500mm
ലേസർ പവർ1000W、1500W、2000W、3000W、6000W
Positioning Accuracy±0.03mm/m
ആവർത്തിച്ചുള്ള സ്ഥാനനിർണ്ണയ കൃത്യത± 0.02 മിമി
Maximum Moving Speed120മി/മിനിറ്റ്
Maximum Cutting Speed60മി/മിനിറ്റ്
Drive SystemHigh precision gear and rack + high precision linear guide rail
വോൾട്ടേജ്380VAC ± 10%/50Hz



Equipment

Fiber Laser Cutting Head And Automatic Tracking SystemFiber Laser Cutting Head And Automatic Tracking System

1. Fiber Laser Cutting Head and Automatic Tracking System
Equipped with a special fiber laser cutting head and a capacitive non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board, and avoid the material scrap caused by the change of focal length when the material is uneven.

Machine Tool SystemMachine Tool System

2. Machine Tool System
The mobile gantry structure can maintain long-term stability and anti-vibration; the aluminum beam has been professionally manufactured by professional large-scale enterprises, secondary aging treatment, and precision machining by large gantry milling machines to ensure the rigidity and stability of the machine tool. Good performance. The equipment has high precision, good rigidity and stable operation.

Machine BaseMachine Base

3. Machine Base
After professional manufacturing by professional large enterprises, secondary aging treatment, large-scale gantry milling machine precision processing, these design and processing methods ensure that the machine tool has excellent shock resistance, high rigidity and stability.

Slag discharge systemSlag discharge system

4. Slag discharge system
The lower part of the bed is equipped with a partition collector, which can automatically remove waste materials and collect small parts in the production process.

Transmission SystemTransmission System

5. Transmission System
It adopts high-quality rack and pinion transmission and bilateral linear guides; and adopts the original servo motor drive system imported from Japan. Its control has the characteristics of stronger stability and better compatibility to ensure the machine tool under high-speed motion.



Fiber Laser Generator

MAX Laser GeneratorMAX Laser Generator
IPG Laser GeneratorIPG Laser Generator
RAYCUS Laser GeneratorRAYCUS Laser Generator

MAX Laser Generator
MFSC 10000W-12000W single module continuous fiber laser is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance free. It takes into account the high-speed cutting of thin plates and the bright surface cutting of medium and thick plates.

IPG Laser Generator
IPG fiber laser generator has reliable performance and low overall cost, which can help end users improve productivity while reducing costs. Full cutting capacity, metal plate cutting thickness up to 120mm.

RAYCUS Laser Generator
High electro-optical conversion efficiency
Customizable output fiber length
QD connector
Maintenance free operation
Wide modulation frequency range
Resistance to high inversion
High efficiency in thin plate cutting



നിയന്ത്രണ സംവിധാനം

FSCUT2000 Control System: 1000W-4000W EtherCAT SystemFSCUT2000 Control System: 1000W-4000W EtherCAT System
FSCUT3000 Control System: Tube Laser Cutting System Support all functions of FSCUT2000 systemFSCUT3000 Control System: Tube Laser Cutting System Support all functions of FSCUT2000 system
FSCUT4000 Control System: Medium Power EtherCAT System. Apply to 1.5-8KW power cuttingFSCUT4000 Control System: Medium Power EtherCAT System. Apply to 1.5-8KW power cutting
FSCUT5000 Control System: Tube Laser Cutting EtherCAT SystemFSCUT5000 Control System: Tube Laser Cutting EtherCAT System
FSCUT6000 Control System: High Power EtherCAT System. Apply to 6-12KW power cuttingFSCUT6000 Control System: High Power EtherCAT System. Apply to 6-12KW power cutting
FSCUT8000 Control System: High Power Laser Cutting EtherCAT System. For ultra high power fiber laser above 8KWFSCUT8000 Control System: High Power Laser Cutting EtherCAT System. For ultra high power fiber laser above 8KW



കട്ടിംഗ് ഹെഡ്

Low Power-RAYTOOLS Brand
BM110: Power rating 1.5KWBM110: Power rating 1.5KW
BM111: Power rating 3.3KWBM111: Power rating 3.3KW
BS04K: Power rating 4KWBS04K: Power rating 4KW
BM06K: Power rating 6KWBM06K: Power rating 6KW
High Power-BOCI Brand
BLT4: For power levels below 30KWBLT4: For power levels below 30KW
BLT5: For high-power tube cuttingBLT5: For high-power tube cutting
BLT6: For ultra-high power laser equipment(max of 40KW)BLT6: For ultra-high power laser equipment(max of 40KW)



വിശദാംശങ്ങൾ

Stable and Solid Bed
Steel plate welding workbench
Twice tempering

Transmission System
The combination of German ROR racks and German HeRen linear guides improves cutting speed

Servo Motor
Adopt Taiwan DELTA servo motor with high performance and long service life.

Servo Drive
Adopt Japan Yaskawa or Taiwan Delta servo drive to ensure the stability and accuracy of work.

Water Cooler
Intelligent control, precise temperature control, various alarm protection function

റിഡ്യൂസർ
Italy brand MOTOVARIO reducer. High tensile rigidity, high precision, low noise, ip65 protection level, to ensure the sustainable operation of 90 degrees.



അപേക്ഷ

The laser cutting machine can cut most metal materials with a cutting thickness of up to 50mm.
Widely used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, springs, circuit boards, electric kettles, medical micro Electronics, hardware, knife measuring tools and other industries.

Mechanical partsMechanical parts
KitchenwareKitchenware
Home appliance industryHome appliance industry
Electronic productElectronic product
Auto industryAuto industry
Medical equipmentMedical equipment



സാമ്പിൾ

laser cutting samplelaser cutting sample
laser cutting samplelaser cutting sample
laser cutting samplelaser cutting sample
laser cutting samplelaser cutting sample
laser cutting samplelaser cutting sample
laser cutting samplelaser cutting sample
